JAVA 9 Feature Listing

Dec 4, 2017

After nearly 3 years of disagreements and agreements on controversial Project Jigsaw, Java 9—formally, Java Platform Standard Edition version 9 is finally here. Java SE 9 has various key architectural as well as component changes, making SE 9, the major feature release for Java Platform. The following are mentioned some of the key features and enhancements of Java 9:


  • Module System (Jigsaw Project):

    Though most significant feature of Java 9 is Module System, still it is very controversial. It is released as a part of Jigsaw Project by Oracle Corporation to ease the woes of Java SE previous versions. Following features are part of the Jigsaw Project:

    • Modular JDK
    • Modular Java Source Code
    • Modular Run-time Images
    • Encapsulate Java Internal APIs
    • Java Platform Module System

    As in Java 9 Development Services, JDK, JRE, JARs etc. are divided into smaller modules, so developers can implement only those modules that are demanded to develop a particular application. In addition, Module system provides ease of Testing and Maintainability, support to better Performance, support for strong Encapsulation, support to less coupling between components, support to Single Responsibility Principle (SRP) and restricts access to Internal Non-critical APIs.

    JDK 9 Folder Structure:

    JDK 9 folder structure, unlike JDK 8 folder structure, doesn’t possess JRE folder. JRE is separated into a different folder named ‘jmods’, that contains a set of Java 9 modules and is available at ${JAVA_HOME}/jmods. ‘jmods’ which has approximately 95 modules collectively known as “JDK Modules”.

    Java SE 9 Module:

    Java 9 module is a self-explanatory collection of the following main components:

    • One Module
    • Module Name
    • Module Descriptor
    • Set of packages
    • Set of types and resources

    In Java 9, JDK jars and Java SE Specifications are separated into two sets of modules – All JDK modules start with “jdk”, while all Java SE specifications modules which start with “java”. Java SE 9 has a “java.base” module commonly known as base module and acts as the heart of all Java 9 modules (all JDK modules and User-defined modules).

    Developers can create their own modules as shown below:

    module { }

    Here, ‘module’ is used to create a simple module.

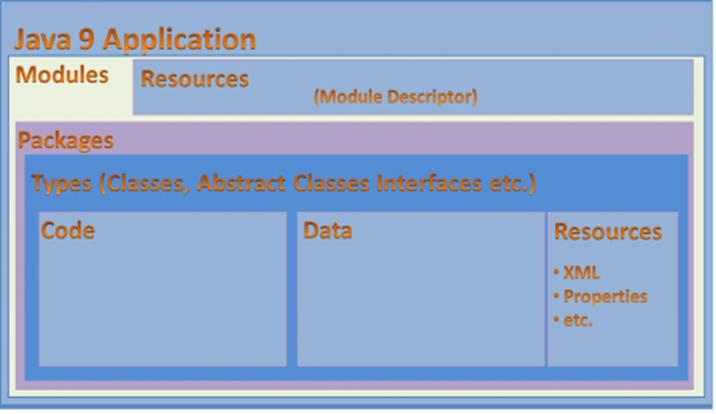

    Java 9 application with added component Modules can be understood from the below figure:


    Jshell (Java 9 REPL):

    Java 9 features the Read-Eval-Print-Loop (REPL) tool most commonly known as Jshell. Java 9’s REPL feature interactively evaluates declarative statements and expressions. With this, developers can receive feedback for programs before compilation, just by adding few lines of code. It does not require any IDEs or Editors to execute simple Java development services.

    It is used to execute and test any Java Constructs like class, interface, enum, object, statements, etc. very efficiently and quickly.

    |  Welcome to JShell -- Version 9-ea
    |  For an introduction type: /help intro
    jshell> int a = 10
    a ==> 10
    jshell> System.out.println("a value = " + a )
    a value = 10

    Reactive Streams:

    Reactive programming has become very popular in application development with technologies like Scala,Play, Akka, etc. In Java 9, new Reactive Streams API are introduced to achieve similar features as of reactive programming.

    Java SE 9 Reactive Streams API is a Publish/ Subscribe Framework used to implement Asynchronous, Scalable and Parallel applications easily. Java SE 9 has introduced the following APIs to develop Reactive Streams in Java-based applications:

    • java.util.concurrent.Flow
    • java.util.concurrent.Flow.Publisher
    • java.util.concurrent.Flow.Subscriber
    • java.util.concurrent.Flow.Processor

    Multi-Resolution Images:

    A new multi-resolution image API, defined in java.awt.image package, let a set of images with different resolutions to be wrapped up into a single multi-resolution image. Below mentioned basic operations can be performed on a multi-resolution image:

    • To retrieve a resolution-specific image variant based on a given DPI metric and set of image transformations, and
    • To retrieve all of the variants in the image

    Apart from these operations, a multi-resolution image will behave alike an ordinary image. The java.awt.Graphics class will retrieve the necessary variant from a multi-resolution image based on the current display DPI metric and any applied transformations.

    Private Methods in Interface:

    In Java SE 8, developers were allowed to write method implementation in interfaces by using Static and Default methods. But this feature led to code redundancy. To remove the code redundancy, one way was to extract common code in a public method which led to a threat of exposing code to other modules and clients directly.

    Java SE 9 introduced a new feature to interfaces to give answer to the raised issues – Private methods in interface. Interfaces can have any of the following members:

    • Constant Variables
    • Abstract Methods
    • Default Methods
    • Static Methods
    • Private Methods
    • Private Static Methods


    public interface DBLogging{
          String MONGO_DB_NAME = "ABC_Mongo_Datastore";
          String NEO4J_DB_NAME = "ABC_Neo4J_Datastore";
          String CASSANDRA_DB_NAME = "ABC_Cassandra_Datastore";
          default void logInfo(String message){
            log(message, "INFO")
          default void logWarn(String message){
            log(message, "WARN")
          default void logError(String message){
             log(message, "ERROR")
          default void logFatal(String message){
             log(message, "FATAL")
          private void log(String message, String msgPrefix){
             Step1: Connect to DataStore
             Setp2: Log Message with Prefix and styles etc.
             Setp3: Close the DataStore connection
          // Any other abstract methods

    Here, redundant code has been extracted into a common private method so that API Clients cannot see the crucial code.

    Process API:

    In Process API, Oracle team added a couple of new classes and methods to ease the controlling and managing of OS processes. Two new interfaces added in Process API are:

    • java.lang.ProcessHandle
    • java.lang.ProcessHandle.Info

    Process API example

    ProcessHandle currentProcess = ProcessHandle.current();
    System.out.println("Current Process Id: = " + currentProcess.getPid());

    Some of the information, developers can now obtain from Process instance which includes:

    • Whether the process supports normal termination (i.e. any of the “non-forcible” kill signals in Linux)
    • The process ID (i.e. the “pid”)
    • A handle to the current process
    • A handle to the parent process, if one exists
    • A stream of handles to the direct children of the process
    • A stream of handles to the descendants (direct children, their children, and so on recursively)
    • A stream of handles to all processes visible to the current process
    • Process metadata such as the full command line, arguments, start instant, owning user, and total CPU duration

    Try-with Resources:

    Java SE 9 has added a few improvements in the Java SE 7’s new exception handling construct: Try-With-Resources, to overcome the flaws in Java SE 7.

    Try-With-Resources Example-Java SE 7:

    void testARM_Before_Java9() throws IOException{
     BufferedReader reader1 = new BufferedReader(new FileReader("test.txt"));
     try (BufferedReader reader2 = reader1) {

    Here, a utility method which creates a BufferedReader object to read the content of a file is created. If the above code snippet is observed, even though there is reader1 referring to BufferedReader object, a duplicate “reader2” BufferedReader object has been created to use it in Try-With-Resources. It is one small bug or issue in Java SE 7 or 8 versions.

    In Java SE 9 to overcome the above mentioned issue, if there is a resource already declared outside the Try-With-Resource Statement as final or effectively final, so now there is No need to declare a local variable. Previously created variable can be used within Try-With-Resource Statement without any issues as shown below:

    void testARM_Java9() throws IOException{
     BufferedReader reader1 = new BufferedReader(new FileReader("test.txt"));
     try (reader1) {

    Diamond Operator Extension:

    Java SE 9 has provided extension to the Java SE 7 feature with Diamond Operators, in order to remove the limitations and issues with Anonymous Inner Classes. Following code snippet shows the limitation of diamond operator with Anonymous Inner classes in Java SE 7:

    public abstract class MyHandler<t>{
    	//constructor, getter, setter..
    	abstract void handle();
    // valid code
    MyHandler<integer> intHandler = new MyHandler<integer>(1) {
    public void handle() {
    				// handling code...
    //Invalid in Java SE 7 &amp; 8
    MyHandler<integer> intHandler = new MyHandler&lt;&gt;(10) { // Anonymous Class };
    MyHandler<!--?--> handler = new MyHandler&lt;&gt;(""One hundred") { // Anonymous Class };

    The above code throws compilation error in Java SE 7 & 8 while it runs without compilation error in Java SE 9 due to the Diamond Operator Extension introduced.

    Unified JVM Logging:

    Java 9 came up with a unified logging architecture (JEP 158) that pipes a lot of messages that the JVM generates through the same mechanism, which can be configured with the -Xlog option especially for complicated Java Software Development. This gives uniform access to log messages from different subsystems such as class loading, threading, garbage collector, module system, or interaction with the underlying operating system.

    By simply executing java -Xlog, appending -version gives the below output:

    $ java -Xlog -version

    # truncated a few messages

    > [0.002s][info][os ] HotSpot is running with glibc 2.23, NPTL 2.23

    # truncated a few messages

    It shows how long the JVM has been running (2 ms), the message’s log level (info), its tags (only os), and the actual message.

    SafeVarargs Scope Extension:

    Java 7 introduced the SafeVarargs annotation type for asserting that the bodies of annotated final or static methods, or constructors don’t perform potentially unsafe operations on their varargs (variable number of arguments) parameters. Java 9 expands this capability to also include private methods.

    SafeVarargs must be used with methods that can’t be overridden because an overriding method could violate its superclass method's @SafeVarargs annotation by performing an unsafe operation. Static, final, and private methods, and constructors can’t be overridden, so they are used with SafeVarargs.

    HTTP 2 client:

    New HTTP 2 Client API to support HTTP/2 protocol and WebSocket features has been introduced in Java SE 9. Existing HTTP Client API has numerous issues like supports HTTP/1.1 protocol and doesn’t support HTTP/2 protocol and WebSocket, works only in “Blocking mode” and lot of performance issues. This HttpURLConnection API is being replaced with new HTTP client.

    This API is being introduced under “” package. It supports both HTTP/1.1 and HTTP/2 protocols and both Synchronous (Blocking Mode) and Asynchronous Modes. The Asynchronous Mode is supported using WebSocket API.

    HTTP 2 Client Example

    jshell&gt; import*
    jshell&gt; import static*
    jshell&gt; import static*
    jshell&gt; URI uri = new URI("http://test/2016/05/java-news.html")
    uri ==&gt; http://test/2016/05/java-news.html
    jshell&gt; HttpResponse response = HttpRequest.create(uri).body(noBody()).GET().response()
    response ==&gt;
    jshell&gt; System.out.println("Response was " + response.body(asString()))

    HTML 5 Javadoc:

    Javadoc is the tool that can generate documentation for API in HTML format. In previous version of JDK, it’s HTML 4.01 – an old standard. JDK 9 Javadoc now supports to generate HTML5 markup, improves search capability and Doclint.

    -Xdoclint enables recommended checks for issues in Javadoc comments: bad references, lack of accessibility, missing comments, syntax error and missing HTML tags. By default, -Xdoclint is enabled. We can disable it by -Xdoclint:none.

    Miscellaneous Java SE 9 features:

    Some of the miscellaneous features of Java SE 9, equally important as the key features, are GC (Garbage Collector) Improvements, Stack-Walking API, Filter Incoming Serialization Data, Deprecate the Applet API, Indify String Concatenation, Enhanced Method Handles, Java Platform Logging API and Service, Compact Strings, Parser API for Nashorn, Javadoc Search, etc.

    Java SE 9 Deprecated and Removed Features:

    The main and foremost amongst them is Applet API which is deprecated as the security-conscious browser makers have been removing support for Java browser plug-ins. Developers are now headed towards alternatives such as Java Web Start, for launching applications from a browser, or installable applications. The appletviewer tool has been deprecated as well.

    Concurrent Mark Sweep (CMS) garbage collector is also deprecated with the intention to speed up the development of other garbage collectors in the HotSpot virtual machine. The low-pause G1 garbage collector is intended to be a long-term replacement for CMS.

    Java SE 9 excludes Java warnings on import statements to make large code bases clean of lint warnings.

    Java SE 9 removes the ability to select the JRE at launch time via the Multiple JRE feature. Also the JVM TI (Tool Interface) hprof (Heap Profiling) agent and the jhat tool are removed as well.

    End of its line:

    Oracle Corporation recently revealed that the Java SE 9 is the last of its kind, in terms of the designation and the time elapsed between major Java version releases. After that, Java developers team has planned to have a six-month release cadence, the next major version is expected to be called Java 18.3, due in March 2018, followed by Java 18.9 six months later.

    JDK 9 will not be a long-term support release instead the next long-term support release would be Java 18.9.
